Explore abdominal CT anatomy in 3D

Connect the shape of an organ with its appearance on a CT slice. Select a structure in this free interactive atlas and follow it across three linked views of a real scan.

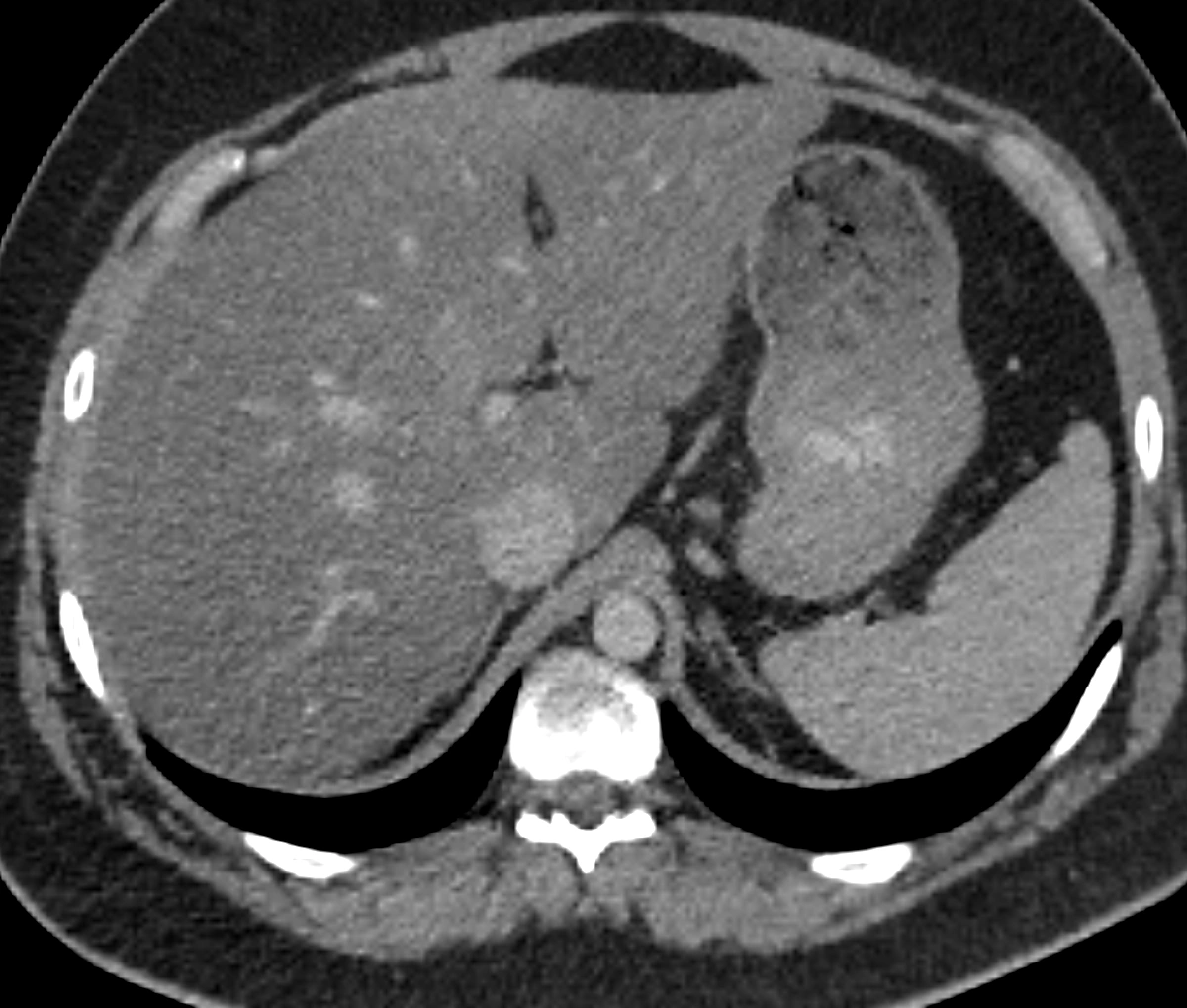

Axial abdominal CT slice from the TotalSegmentator learning scan

One scan. Four connected views.

Explore the liver, spleen, stomach, kidneys, major vessels and spine. Move through the slices at your own pace, without creating an account.

Opening the explorer downloads less than 20 MB of scan data and models.

For anatomy learning only, not for diagnosis. This is one clinical scan; anatomy and appearances vary between people.
CT data and segmentations: TotalSegmentator, Wasserthal et al., University Hospital Basel. Licensed under CC BY 4.0. Adapted here by resampling, cropping, CT windowing and mesh generation. Original dataset · Data license

How to use this CT anatomy atlas

  1. Select the liver or a kidney from the structure list. The crosshair moves to a point inside that organ in all three slices.
  2. Drag the 3D model to understand the organ’s position. Click a visible organ to move the crosshair to the point you selected.
  3. Move a slice slider to follow a structure through the scan. Click another point in an image to update the other views.
  4. Hide selected models to see deeper structures. Then practise naming structures from memory in the anatomy quizzes.

Understand axial, coronal and sagittal CT images

An axial image cuts across the body; a coronal image separates front and back; a sagittal image separates left and right. These views describe the same volume from different directions. The shared crosshair helps you connect a small circular structure on one slice with a longer structure in another plane.

Why is the patient’s right on the left of the image?

Axial CT images here are displayed as if you were looking up from the patient’s feet. The R and L markers refer to the patient, so the liver appears on the screen’s left. Coronal views face the patient. On the sagittal view, anterior is on the left and posterior on the right. A/P mean anterior/posterior; S/I mean superior/inferior.

From a 3D atlas to active recall

Use the atlas to understand spatial relationships before testing yourself. Follow the kidneys on either side of the spine and locate the aorta and inferior vena cava. The atlas uses a fixed soft-tissue window (width 400, level 50) and eight segmented structures. It is a focused abdominal learning tool, not a complete anatomical atlas or a viewer for uploading your own scans.
